How To Choose High-Quality O-Rings

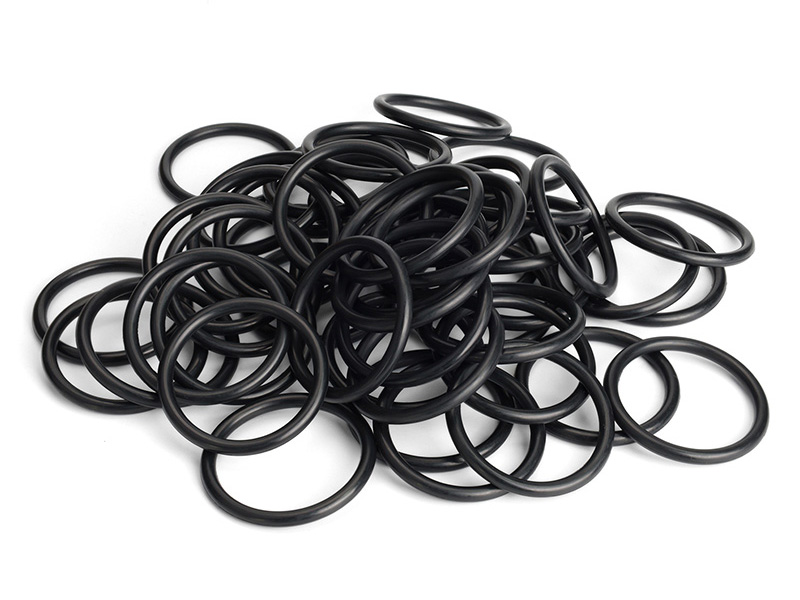

O-RINGS (O-shaped sealing rings) are among the most widely used sealing components in industrial applications, and their quality directly affects the sealing performance and service life of equipment. Selecting high-quality O-rings requires consideration of the following key factors:

1. Material Selection

The primary requirement for a high-quality O-ring is the right material. Common O-ring materials include:

- **Nitrile Rubber (NBR)**: Excellent oil resistance, suitable for petroleum-based hydraulic fluids.

- **Fluorocarbon Rubber (FKM)**: High resistance to heat and chemical corrosion.

- **Silicone Rubber (VMQ)**: Outstanding performance in extreme high and low temperatures.

- **EPDM Rubber (EPDM)**: Strong ozone and weather resistance.

The material should be selected based on the working environment (temperature, pressure, and medium) to avoid premature failure due to incompatibility.

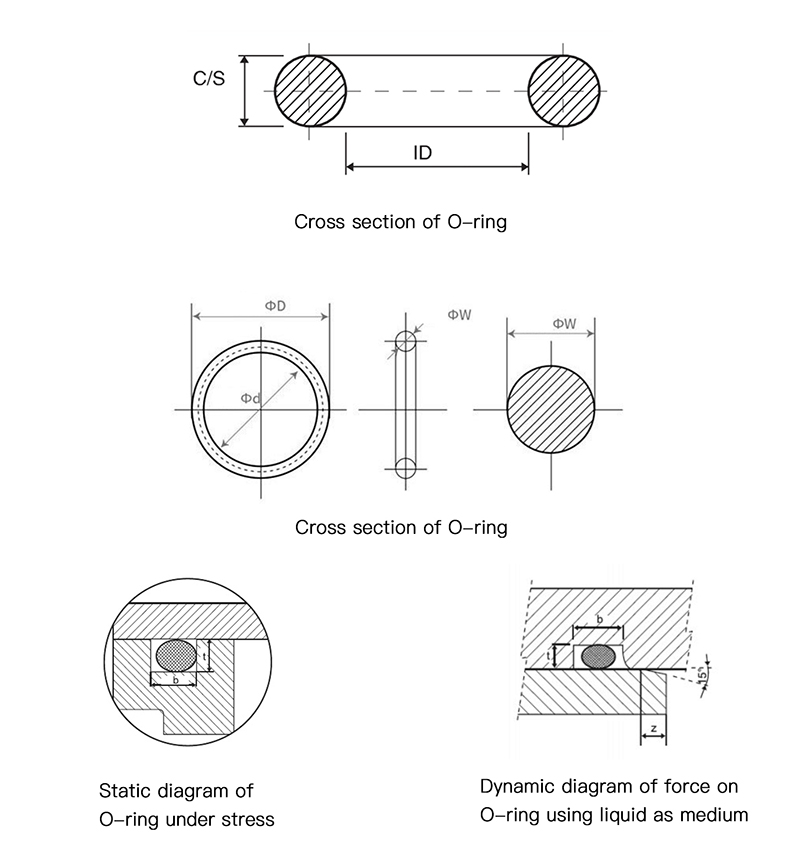

2. Dimensional Accuracy

High-quality O-rings must have precise dimensions:

1. Inner diameter and cross-sectional diameter tolerances should meet international standards (e.g., AS568, ISO3601).

2. Minimal ovality or deformation in cross-section.

3. No visible burrs, flash, or surface defects.

Inaccurate dimensions can lead to poor sealing or installation difficulties.

3. Physical Properties

A high-quality O-ring should possess:

- Appropriate hardness (typically Shore A 70±5).

- Good elastic recovery.

- Low compression set.

- High tensile strength.

These parameters can be verified through the manufacturer's material test reports.

4. Manufacturing Process

High-quality O-rings are produced using:

1. Precision molding for consistent dimensions.

2. Post-curing treatment to enhance material stability.

3. Strict quality control procedures.

4. A contamination-free production environment.

5. Brand & Certifications

Choose reputable brands and check for the following certifications:

- **ISO 9001** Quality Management System certification.

- Industry-specific certifications (e.g., **IATF 16949** for automotive applications).

- Food-grade or medical-grade material certifications (if applicable).

6. Practical Testing

For critical applications, consider:

- Sample testing to verify performance.

- Accelerated lifespan testing.

- Compatibility testing with mating components.

While high-quality O-rings may have a higher unit cost, they significantly reduce leakage risks and replacement frequency, making them more cost-effective in the long run. When selecting O-rings, prioritize technical specifications, supplier credibility, and application requirements rather than focusing solely on price.
